產品展示 Product

開口袋包裝機

開口袋包裝機

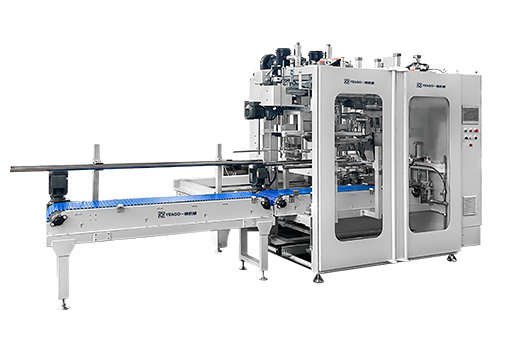

Open-mouth Packer

Realize the integrated functions of automatic bag supplying and filling. The equipment occupies a small space,
It is suitable for different packaging bags such as PE bags, aluminum foil bags, woven bags, kraft paper bags, paper-plastic composite bags, etc. The back end can be equipped with sealing devices such as sewing or heat sealing.
The equipment with dust removal design can be applied to both particles and powder materials, making the working environment cleaner.
The HMI can monitor the running status of the equipment in real time and save relevant data for reference.

工作流程

預放空袋? Pre-place Empty Bags

同時放置 2~3 堆預制袋，為包裝機提供包裝袋。
空袋提取? Take Empty bag

負壓吸袋機構吸取袋底，同時卷簾式口袋傳輸結構將口袋拉平并傳輸?shù)介_(kāi)袋工位。
打開袋口? Open Empty bag

開袋機構同時對口袋正、反兩面進行負壓吸取，上面負壓吸住袋口提升，然后灌裝口兩側的“插刀”結構通過連軸轉動插入打開的口袋內并向兩側撐開。
自動上袋? Supply Empty bag

通過提升插刀手臂將包裝袋送入夾袋機構，完成上袋操作。夾袋機構將包裝袋兩側夾緊，防止粉塵的外溢。
物料灌裝? Material Filling

PLC給信號給自動稱重單元，將稱重單元的物料放入包裝袋。灌裝過程中，進行底部振實。同時通過外部的除塵接口，將放料過程中的物料所形成的粉塵抽走。
抱袋封口? Holding bag and Sealing

放料完成后，通過抱袋輸送機構，將包裝袋的袋口水平夾緊，水平輸送至導入機構，將料袋輸送至封口工位自動封口。
